RJ45 Pass-Through Breakout Board with DIN Clips

MPN: ST-RJ45-PASS-R-DIN

  • $14.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

148 available today. Need more?

Downloads Datasheet download

  • Breaks out all 8 contacts and the shield
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Easily mounts on a 35mm DIN rail
Specifications
Connector:8P8C + Shield
Prototyping Hole Size:0.040"
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

This RJ45 pass-through breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a prototyping area to enable in-circuit modifications as well as easy probing and diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

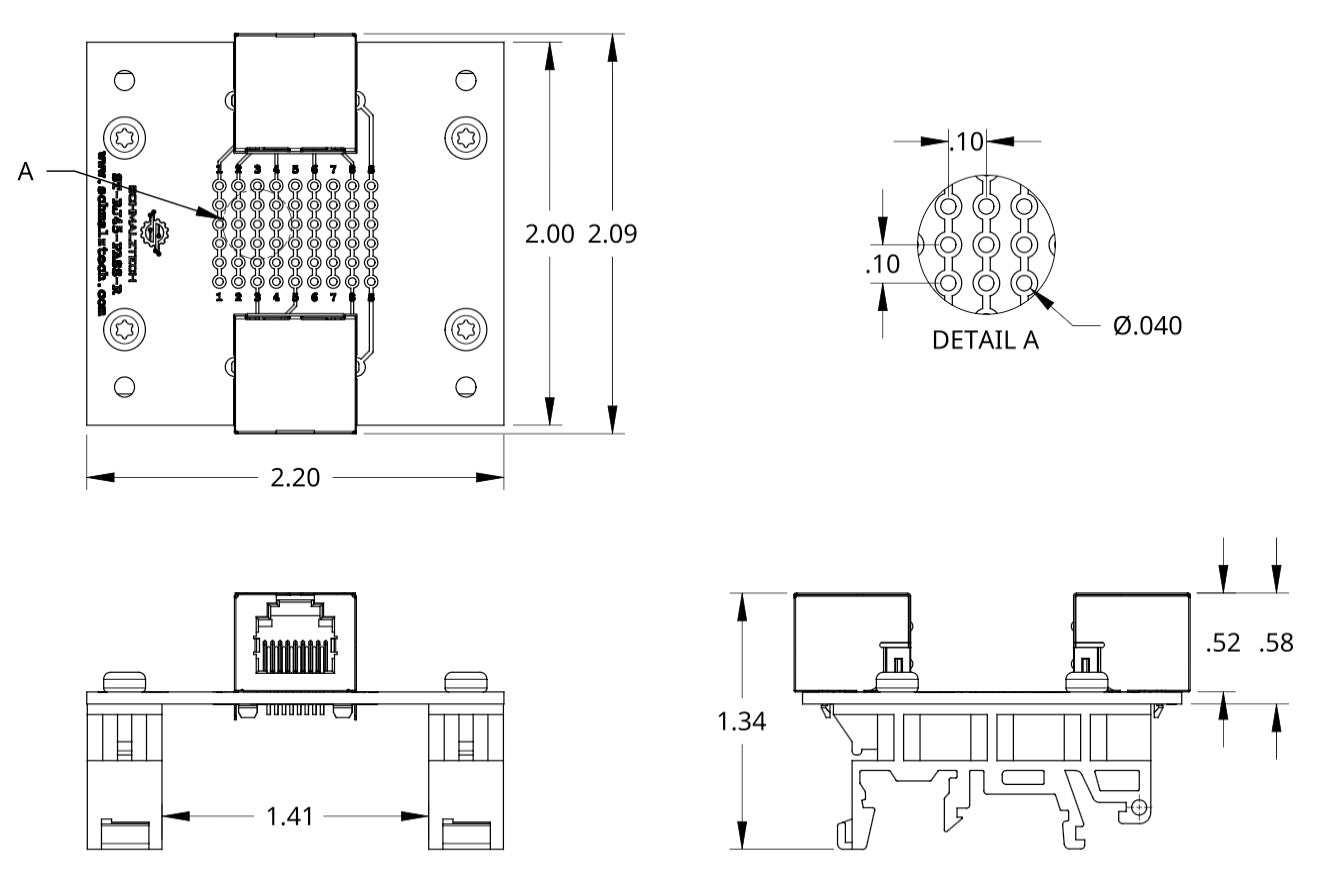

Mechanical Drawing
