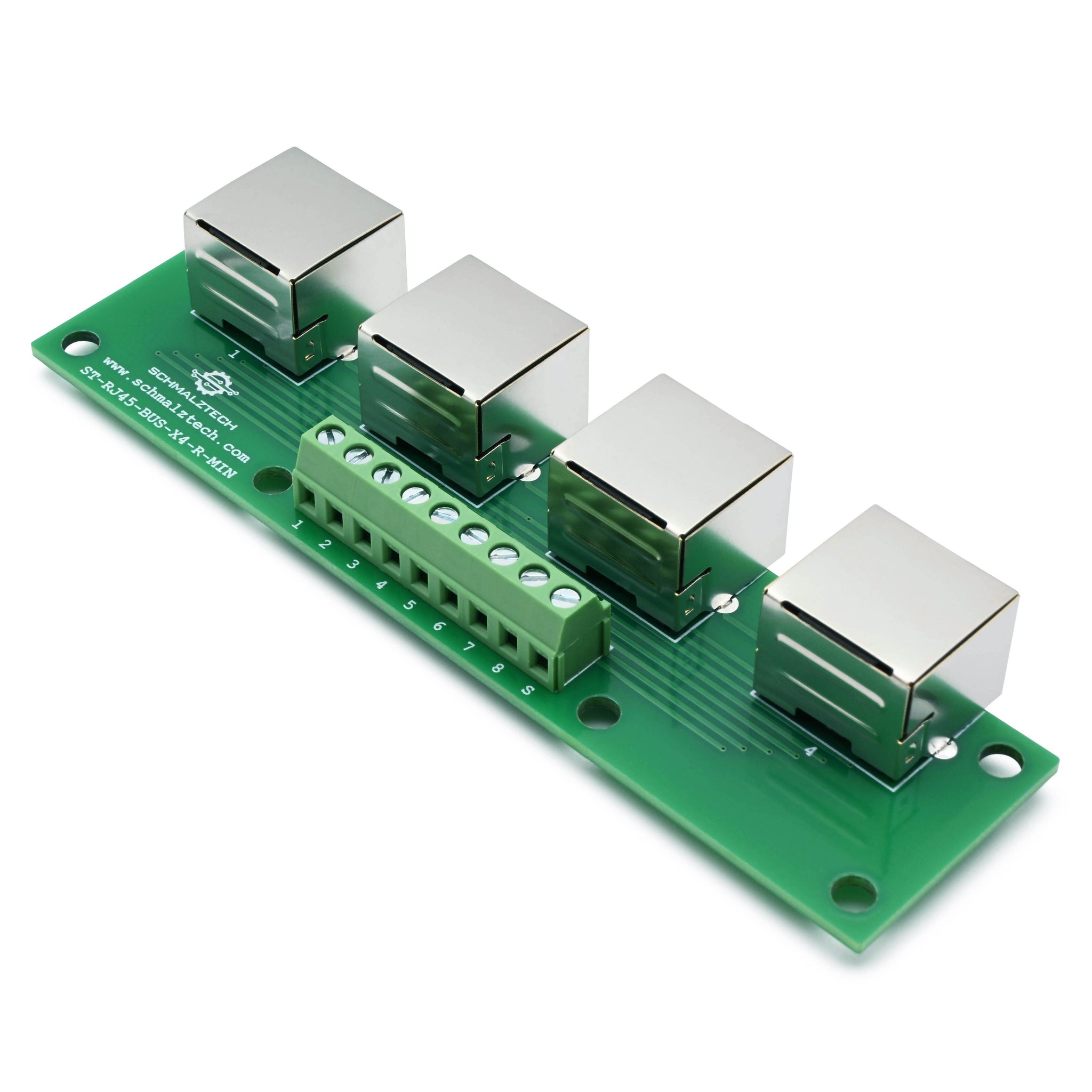

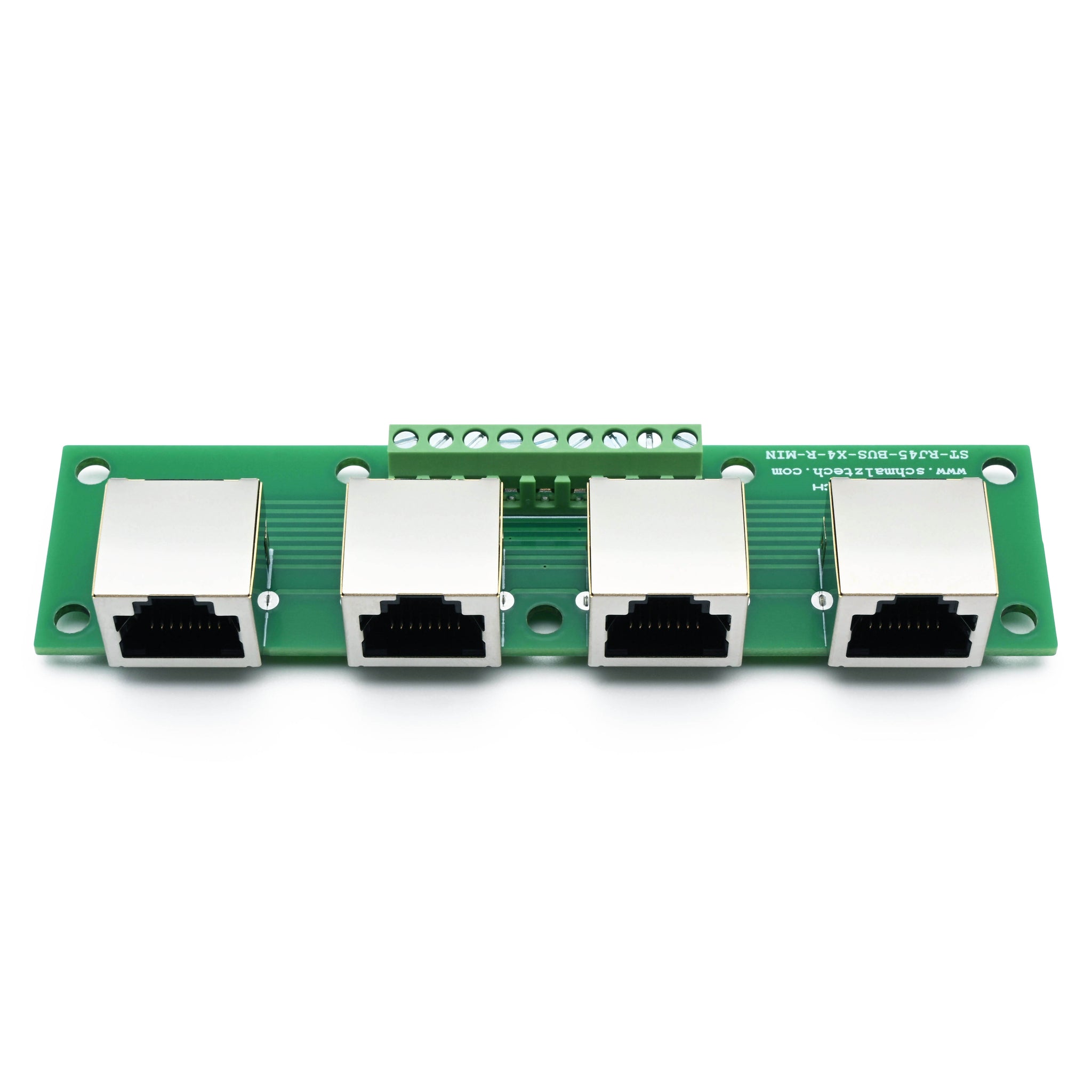

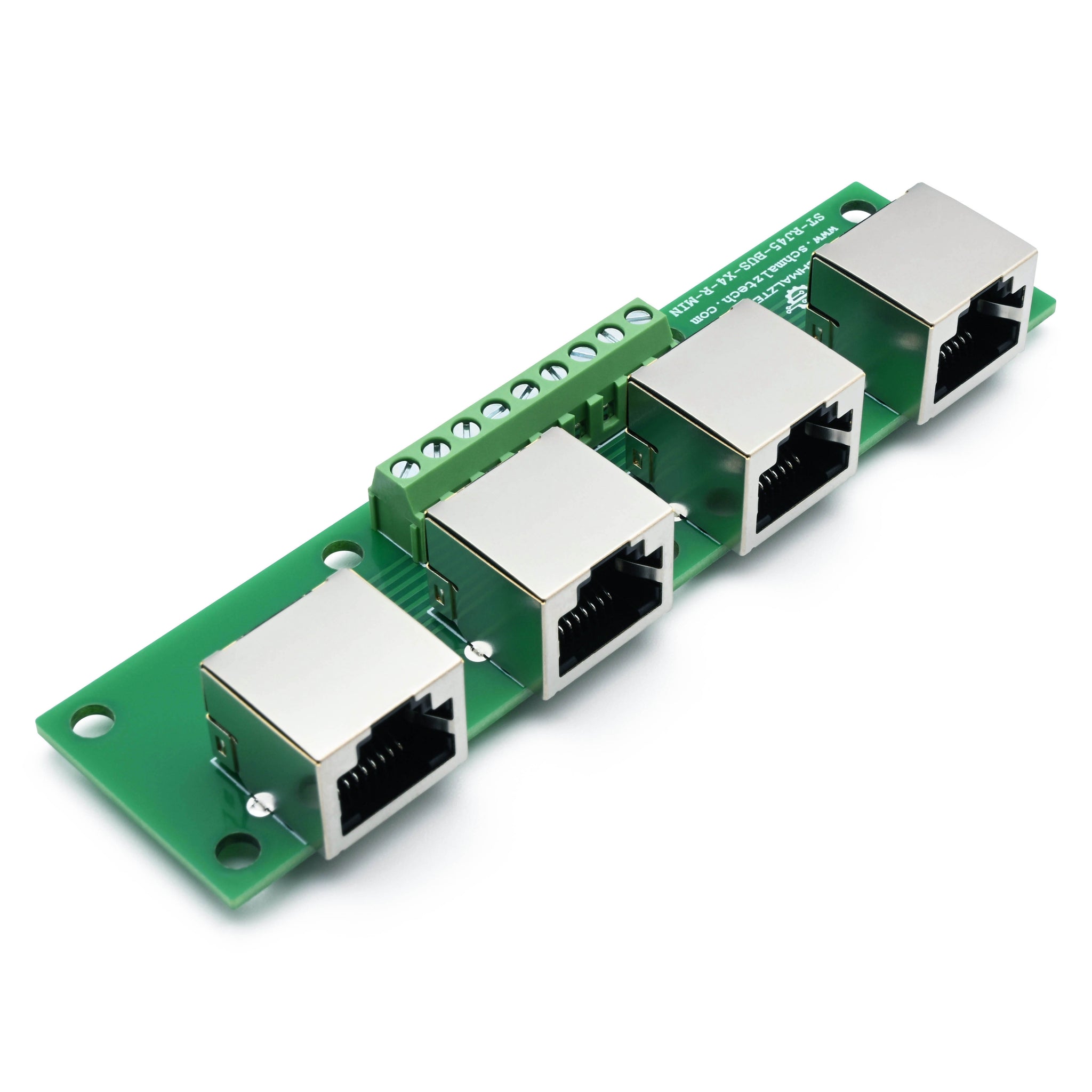

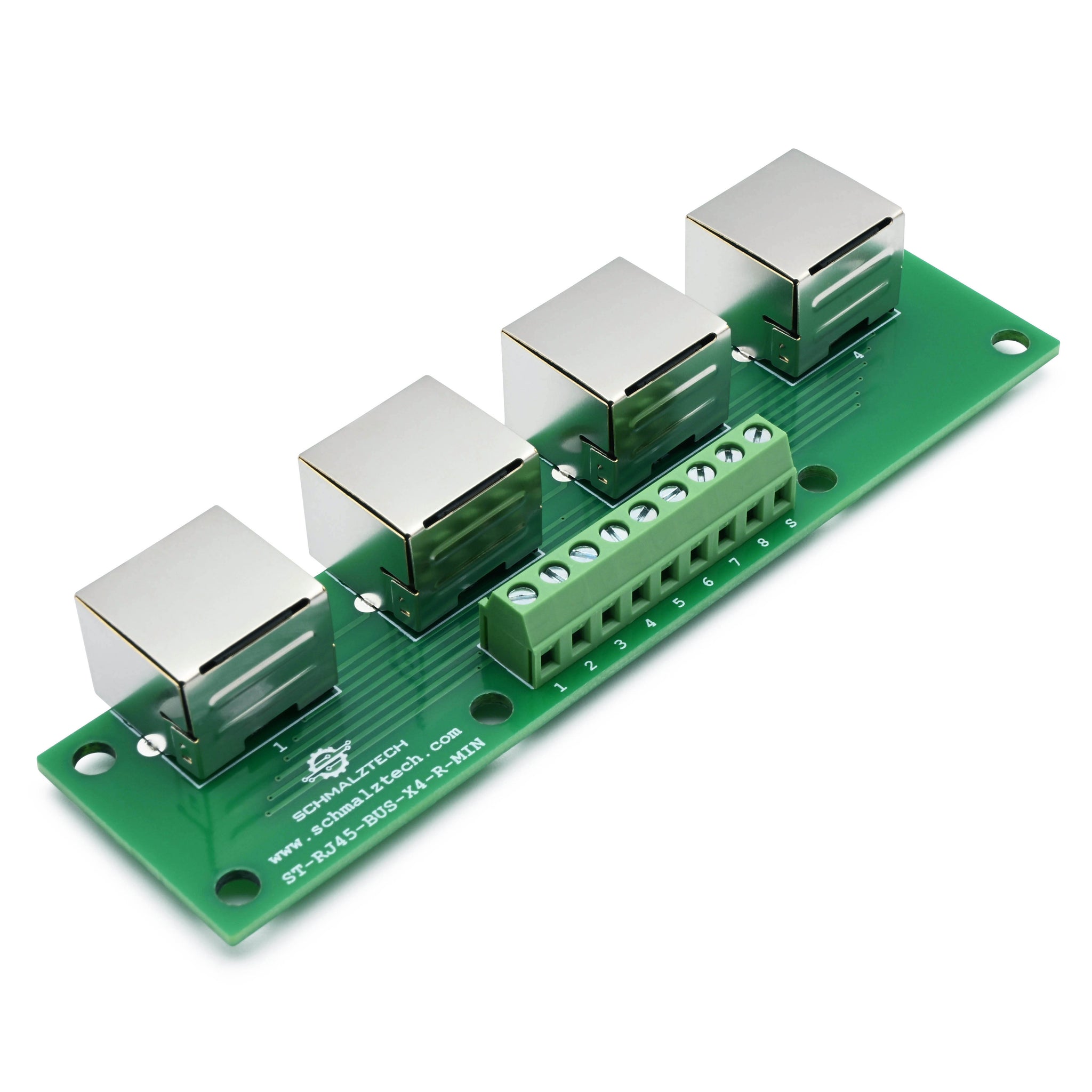

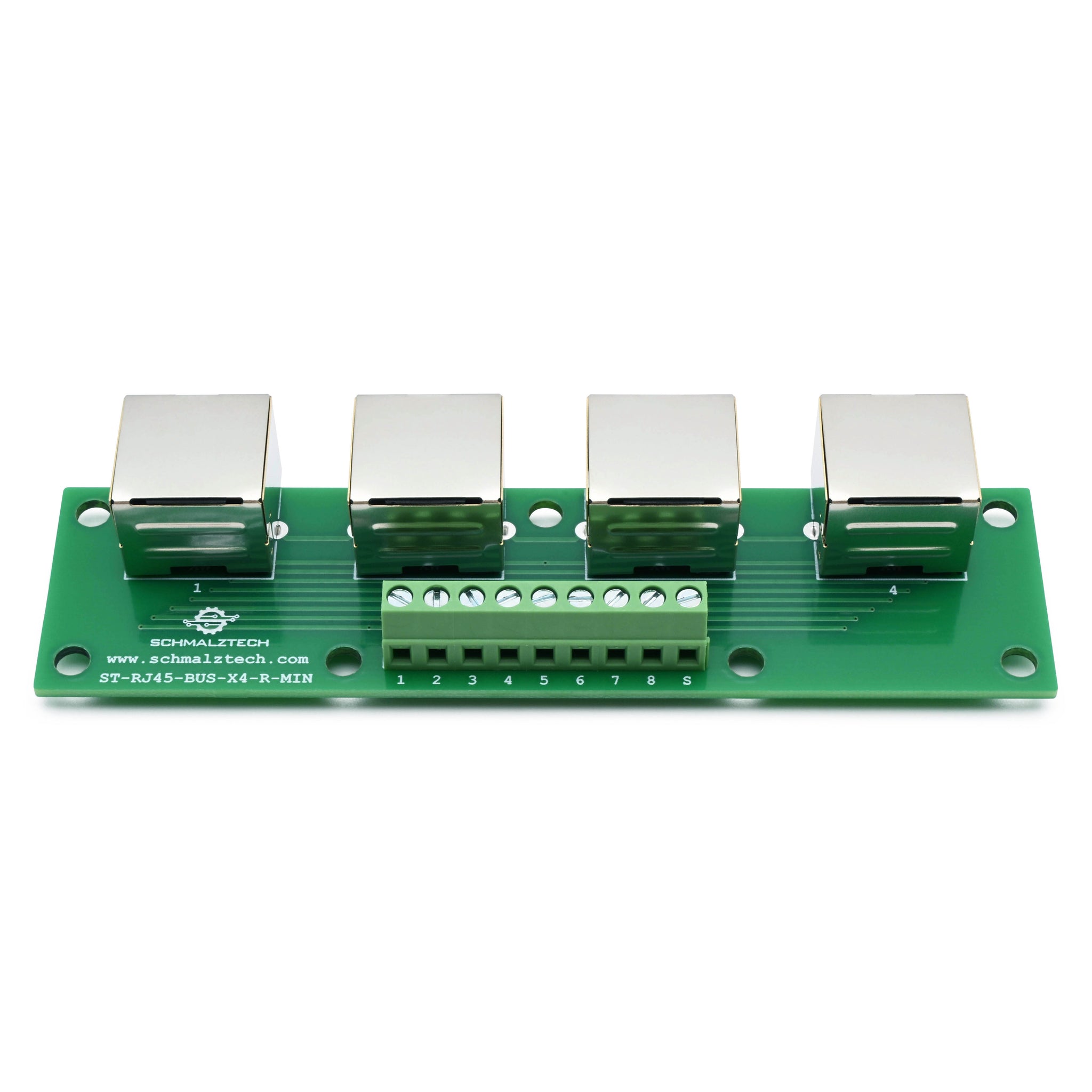

- Connects 4 RJ45 ports in parallel
- Breaks out all 8 contacts and the shield
- Screw terminals for fast connections
- Compact form factor to fit in tight spaces
- Mounting holes for fixturing
| Wire Range (stranded): | 16-24 AWG |
| Wire Range (solid): | 16-24 AWG |
| Connectors: | 8P8C + Shield |
| RJ45 Connections: | 4 |
| PCB Surface Finish: | LF HASL |
| Temperature Rating: | -25°C to +70°C |
WARNING: California Prop 65
This RJ45 bus board breakout provides a parallel connection between multiple RJ45 connectors as well as a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. This board is a great way to quickly pass electrical signals to multiple devices through common RJ45 connections. It can also be used as a fast and robust way to daisy-chain devices. This compact form factor will fit in tight spaces and has mounting holes that allow it to be securely fastened, ensuring a stable connection.

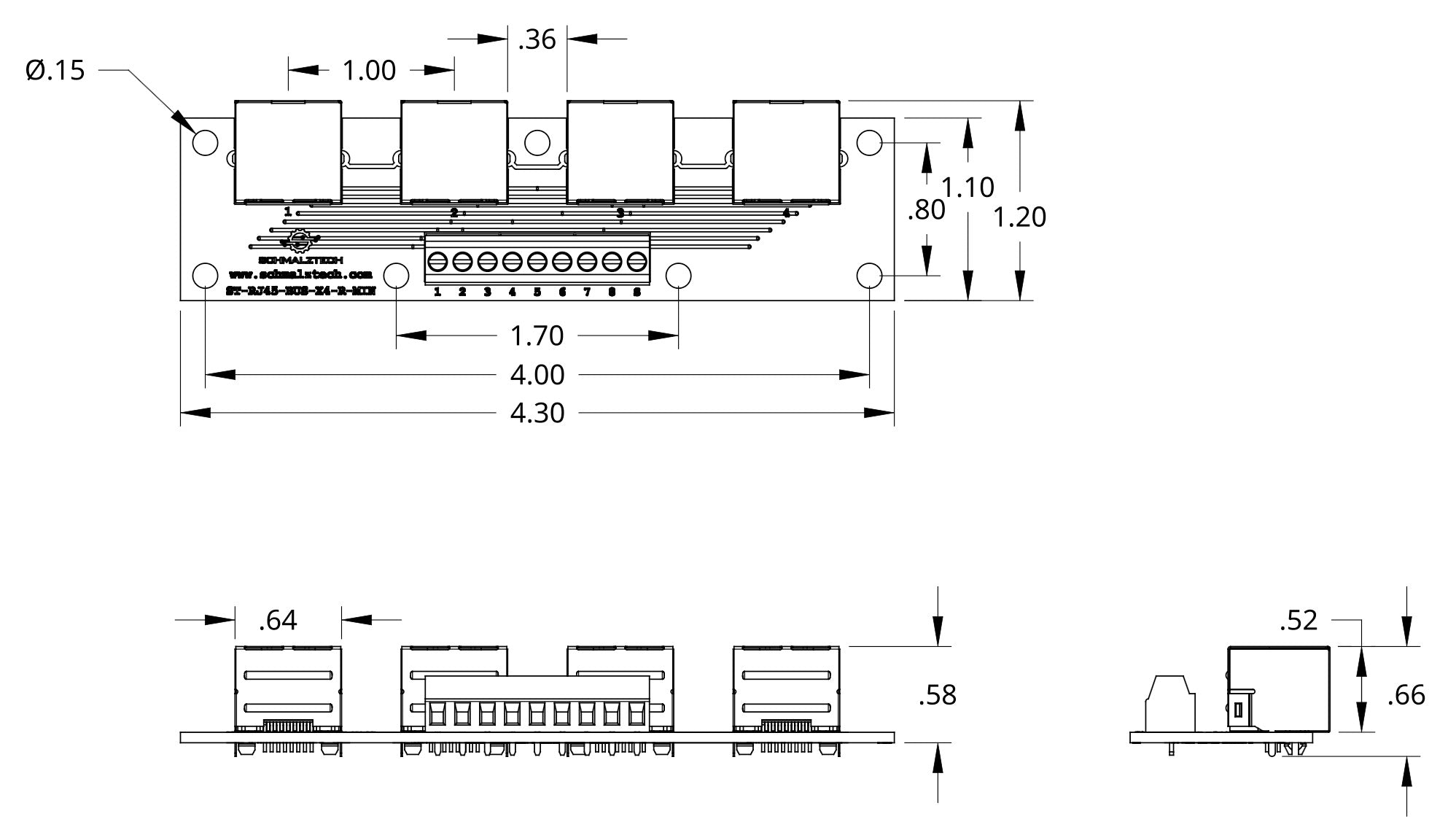

Mechanical Drawing
