- Breaks out all 8 contacts and the shield
- Screw terminals for fast connections
- Compact form factor to fit in tight spaces
- Mounting holes for fixturing
| Wire Range (stranded): | 16-24 AWG |
| Wire Range (solid): | 16-24 AWG |
| Connector: | 8P8C + Shield |
| PCB Surface Finish: | LF HASL |
| Temperature Rating: | -25°C to +70°C |
WARNING: California Prop 65
This RJ45 breakout board provides a convenient method of accessing all the contacts of an 8P8C connector, including the shield. Each of the 9 connections are brought out to a screw terminal for fast and secure termination to wires. This board was designed to be as small as possible while still breaking out all of the contacts of the RJ45 connector. This compact form factor will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.

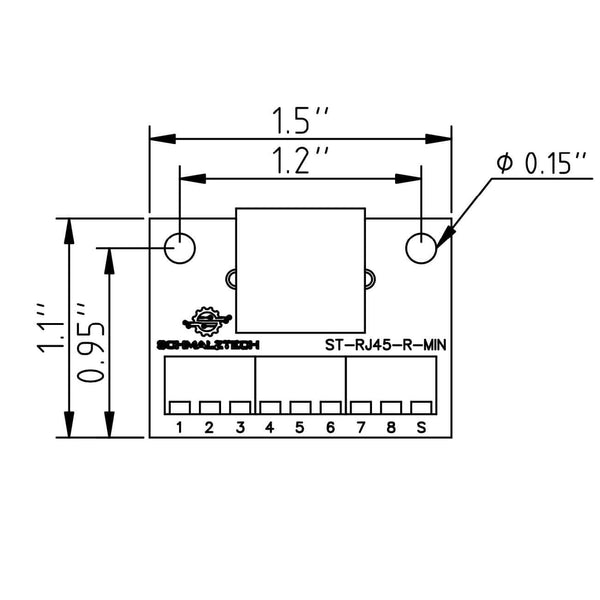

Mechanical Drawing
