DB9 Female Breakout Board with Feet

MPN: ST-DB9-F-R-FT

  • $12.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

129 available today. Need more?

Downloads Datasheet download

  • Breaks out all 9 contacts + shield
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Threaded inserts on connector are removable
  • Rubber feet provide a stable base
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:DB9 - Female
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

This female DB9 breakout board provides a convenient method of accessing all the contacts of a 9-pin D-Sub connector. Each of the 9 connections as well as the shield are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench.

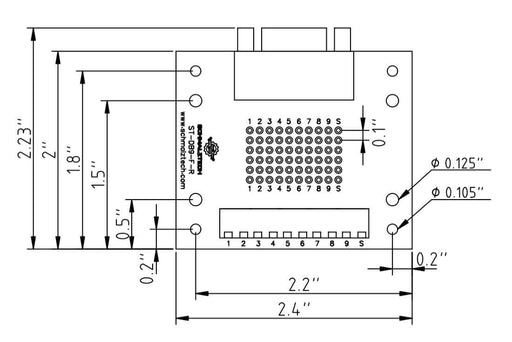

Mechanical Drawing
