DB9 Female Mini Breakout Board

MPN: ST-DB9-F-R-MIN

  • $9.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

147 available today. Need more?

Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • Breaks out all 9 contacts + shield
  • Screw terminals for fast connections
  • Compact form factor to fit in tight spaces
  • Threaded inserts on connector are removable
  • Mounting holes for easy fixturing
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:DB9 - Female
PCB Surface Finish:LF HASL
Temperature Rating:-25°C to +70°C

WARNING: California Prop 65

This female DB9 breakout board provides a convenient method of accessing all the contacts of a 9-pin D-Sub connector.  Each of the 9 connections as well as the shield are brought out to a screw terminal for fast and secure termination to wires.  This board was designed to be as small as possible while still breaking out all of the contacts of the DB9 connectors to screw terminals.  This compact form factor will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection in any project.  The DB9 connector on this board also features removable threaded studs allowing it work with a wide variety of mating connectors.

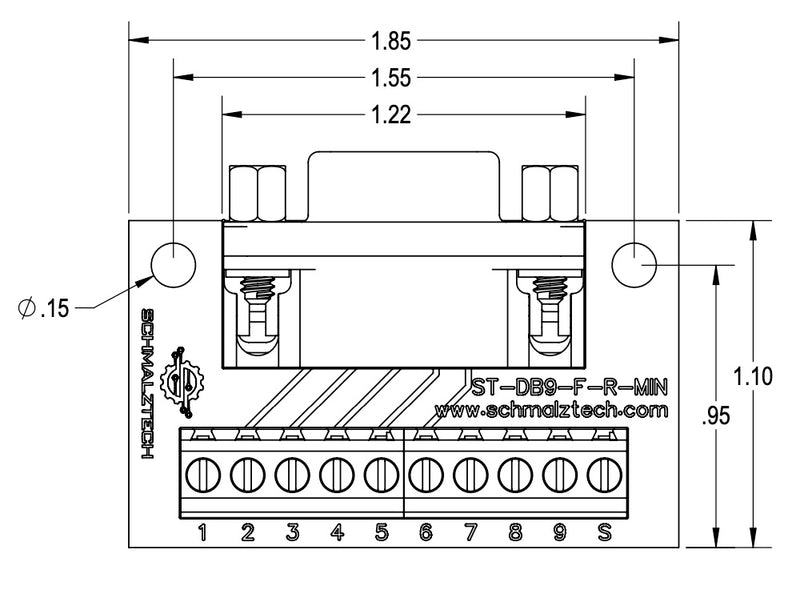

Mechanical Drawing
