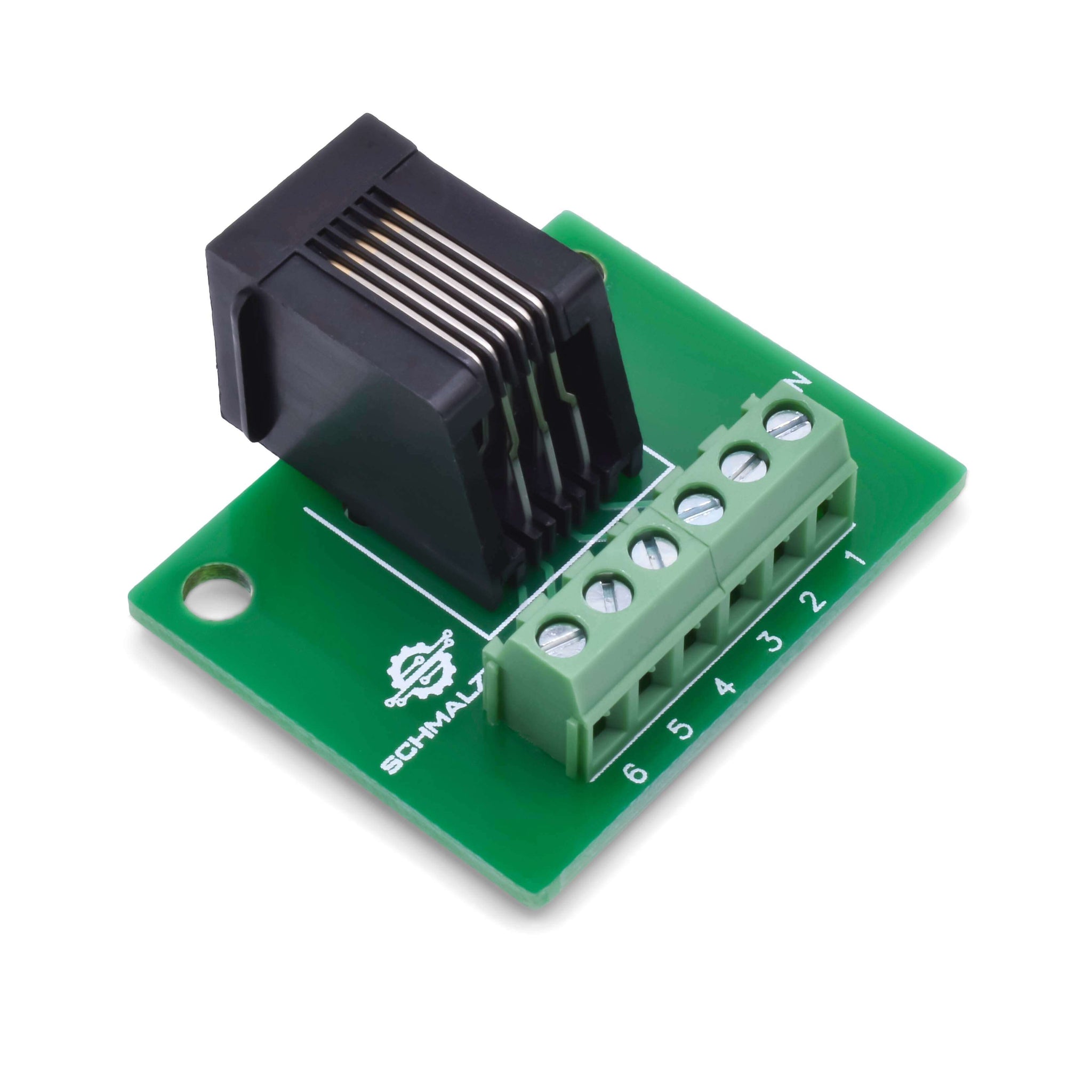

RJ11 Mini Breakout Board

MPN: ST-RJ11-R-MIN

  • $8.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

252 available today. Need more?

Downloads Datasheet download

  • Breaks out all 6 contacts
  • Screw terminals for fast connections
  • Compact form factor to fit in tight spaces
  • Mounting holes for fixturing
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:6P6C
PCB Surface Finish:LF HASL
Temperature Rating:-25°C to +70°C

WARNING: California Prop 65

This RJ11 breakout board provides a convenient method of accessing all the contacts of a 6P6C connector. Each of the 6 connections are brought out to a screw terminal for fast and secure termination to wires. This board was designed to be as small as possible while still breaking out all of the contacts of the RJ11 connector. This compact form factor will fit in tight spaces and has mounting holes to allow it to be securely fastened ensuring a solid connection.

Mechanical Drawing
