RJ11 Breakout Board with Rubber Feet

MPN: ST-RJ11-R-FT

  • $11.99
    Unit price per

-
+

  • Breaks out all 6 contacts
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Rubber feet provide a stable base
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:6P6C
Lead Free:Yes
Temperature Rating:-15°C to +70°C
This RJ11 breakout board provides a convenient method of accessing all the contacts of a 6P6C connector. Each of the 6 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench.

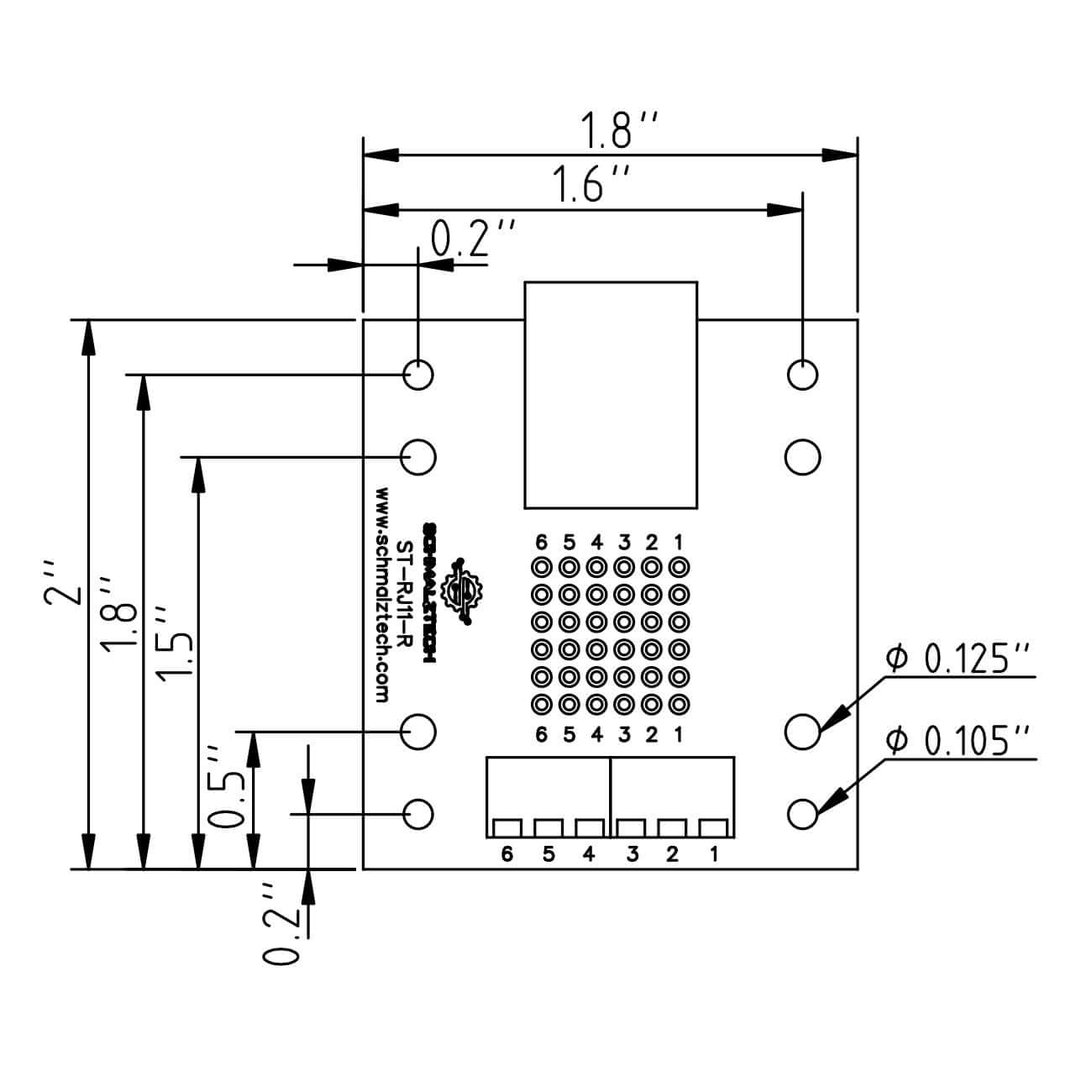

Mechanical Drawing
