RJ11 Breadboard Breakout

MPN: ST-RJ11-R-BB

  • $8.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

149 available today. Need more?

Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • Breaks out all 6 contacts
  • Pin headers for easy breadboard connection
  • Easy access for proving and debugging
  • Dual headers for increased stability
Specifications
Pin Header Size:.025" x .025"
Pin Header Pitch:0.1"
Connector:6P6C
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

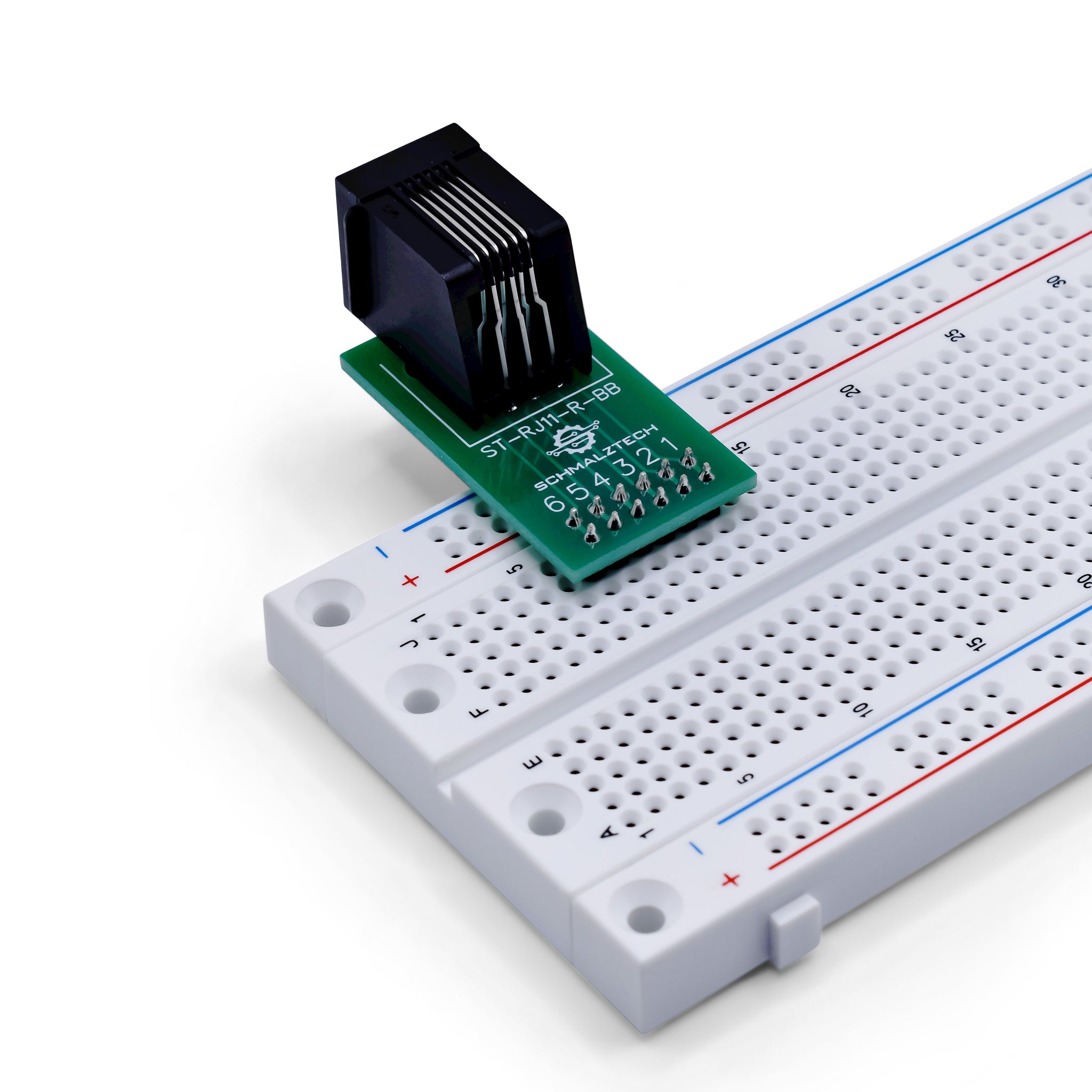

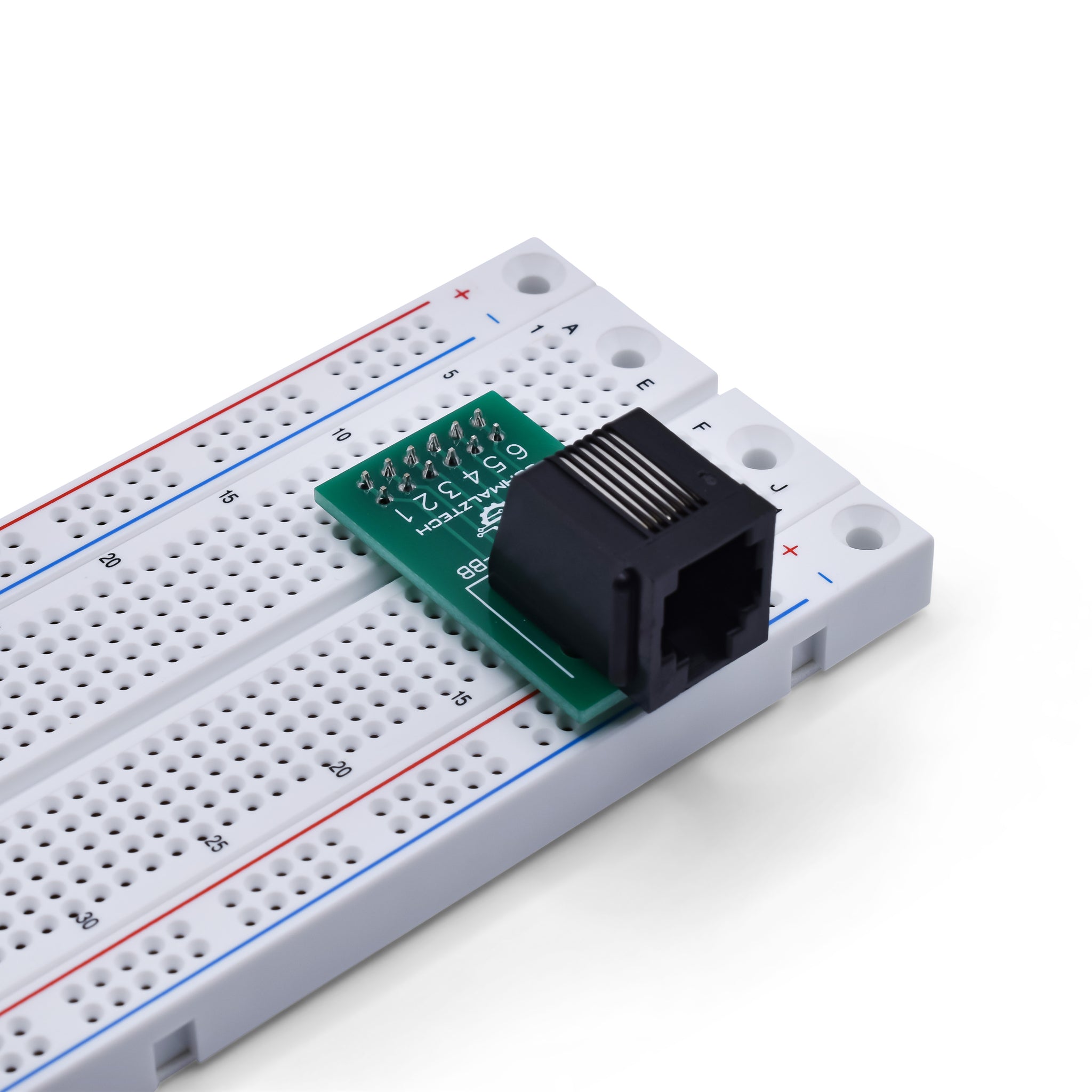

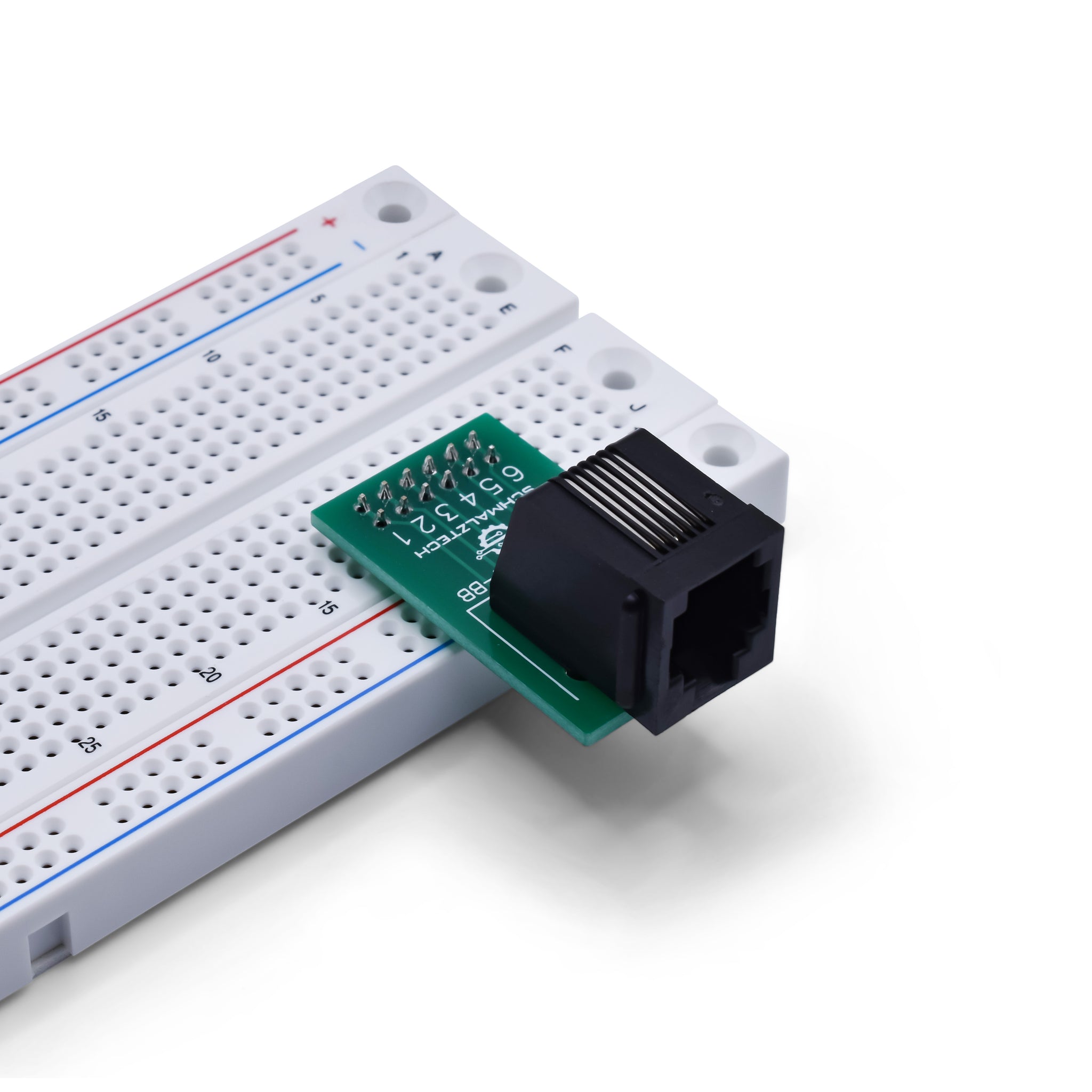

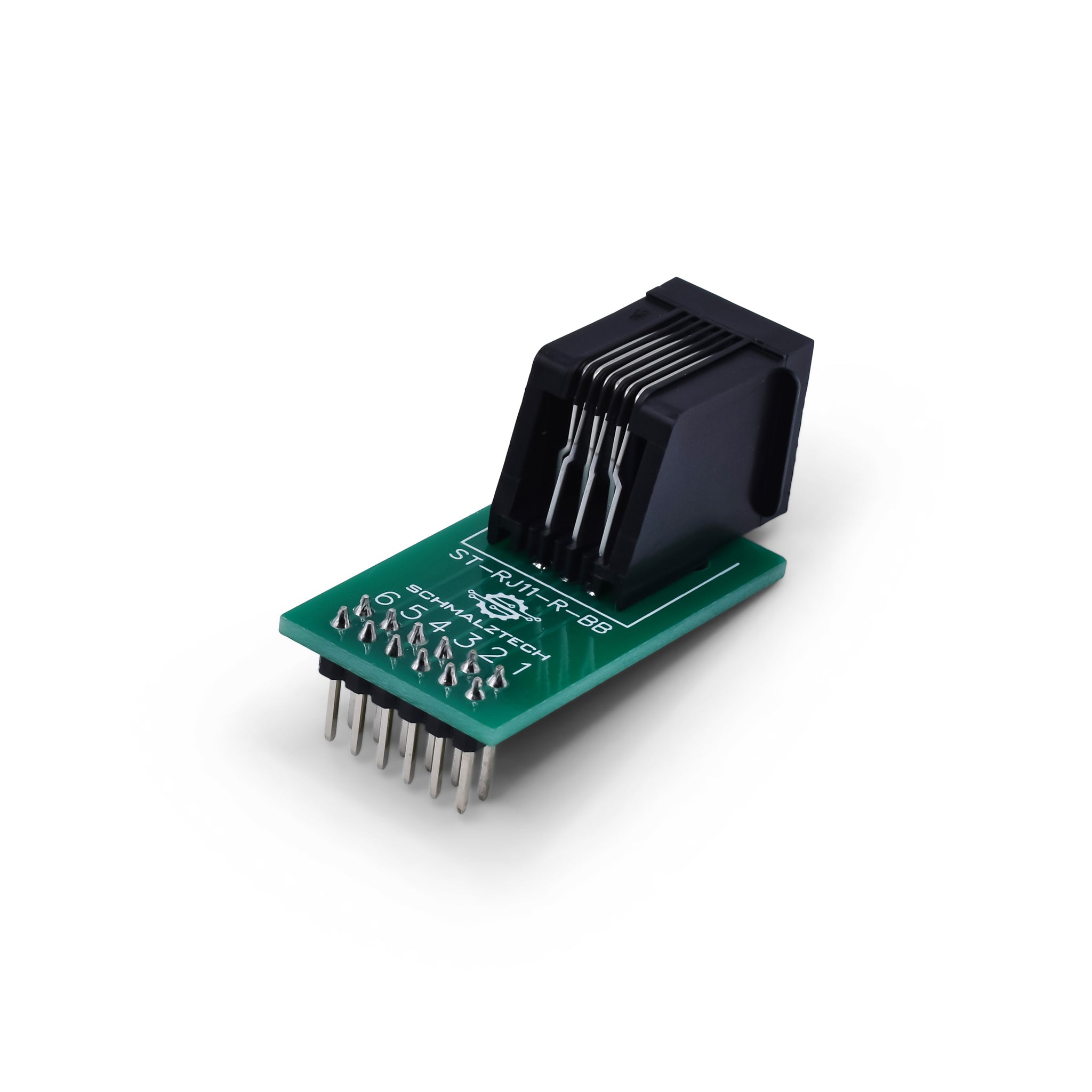

This RJ11 breadboard breakout provides a quick and easy method of accessing all the contacts of a 6P6C connector. Each of the 6 connections are brought out to a pair of pin headers that can connect directly to a standard breadboard. This board has two rows of 0.1" male pin headers to create a more stable connection to the breadboard. By providing a second row of headers the breakout board is less likely to work loose from the breadboard and can better support the weight of a connected cable.

Mechanical Drawing
