2x5 Header / IDC10 Connector Breakout Board with DIN Rail Clips

MPN: ST-HDR-2-5-DIN

  • $14.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

46 available today. Need more?

Downloads Datasheet download

  • Breaks out all 10 contacts
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Quickly access IDC connector pins
  • Easily mounts on 35mm DIN rail
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:2x5 Header (IDC10)
Connector Pitch:0.1"
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

This 2x5 header breakout board provides a convenient method of accessing all the contacts of a female header or IDC connector. Each of the 10 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

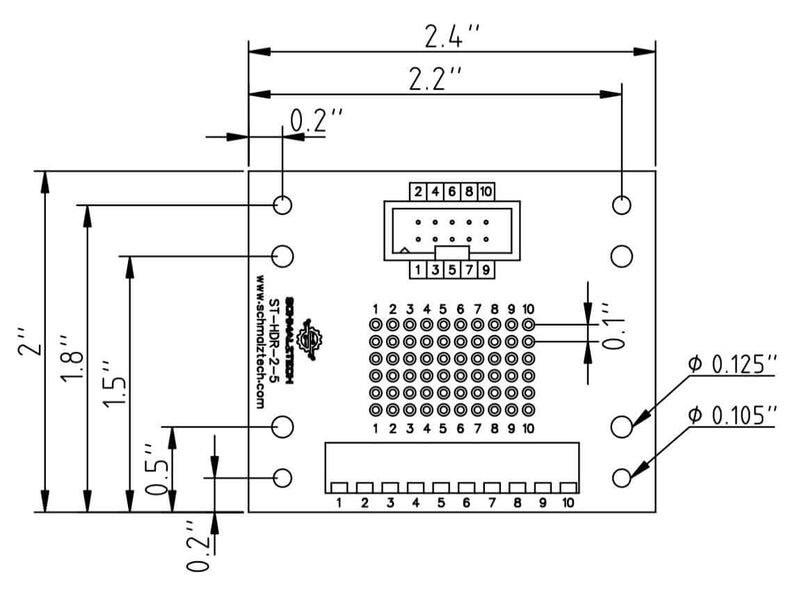

Mechanical Drawing
