2x3 Header / IDC Connector Breakout Board with DIN Rail Clips


  • $14.99
    Unit price per
Free Shipping on U.S. orders over $30.


58 available today. Need more?

Downloads Datasheet download

  • Breaks out all 6 contacts
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Quickly access IDC connector pins
  • Easily mounts on 35mm DIN rail
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:2x3 Header
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

This 2x3 header breakout board provides a convenient method of accessing all the contacts of a female header or IDC connector. Each of the 6 connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

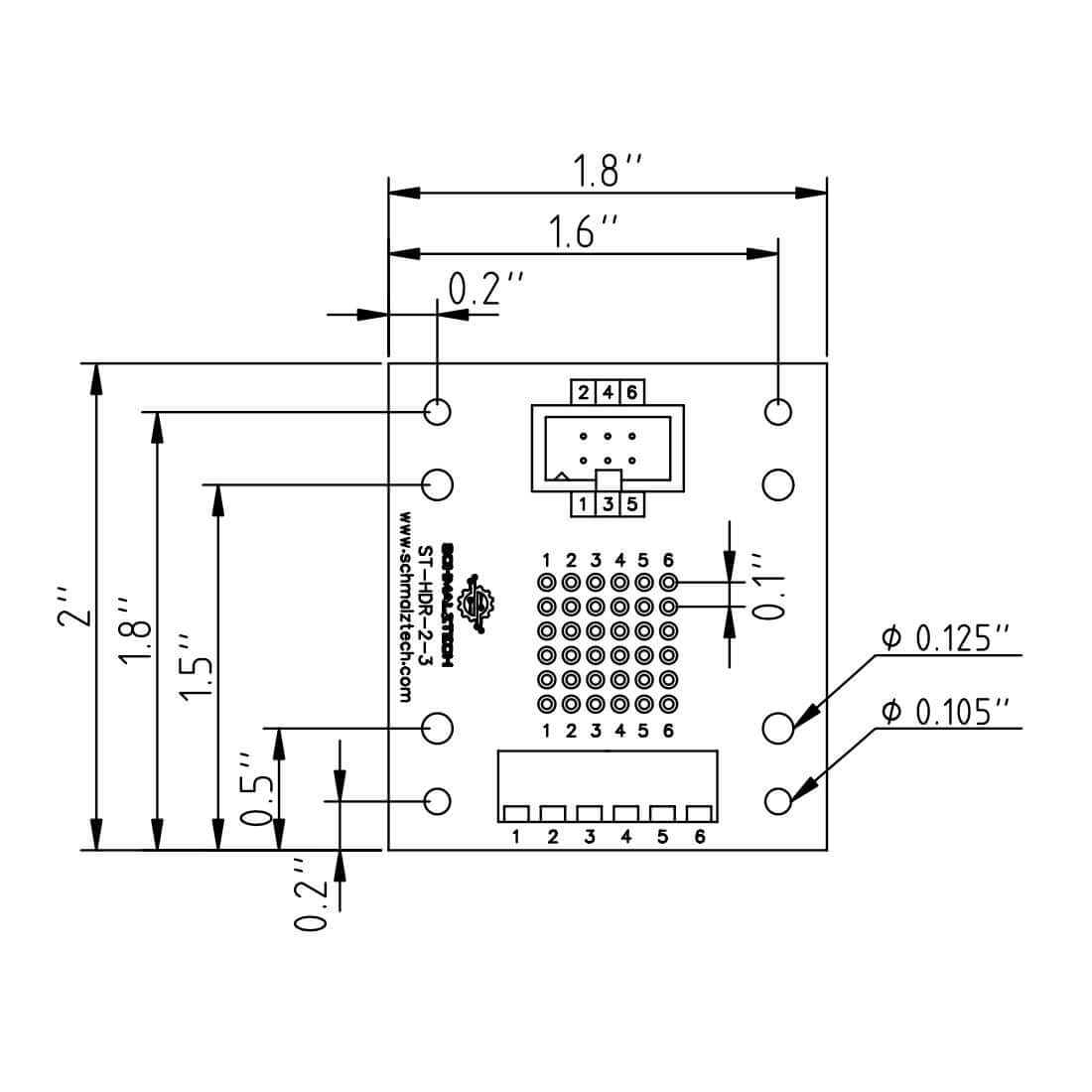

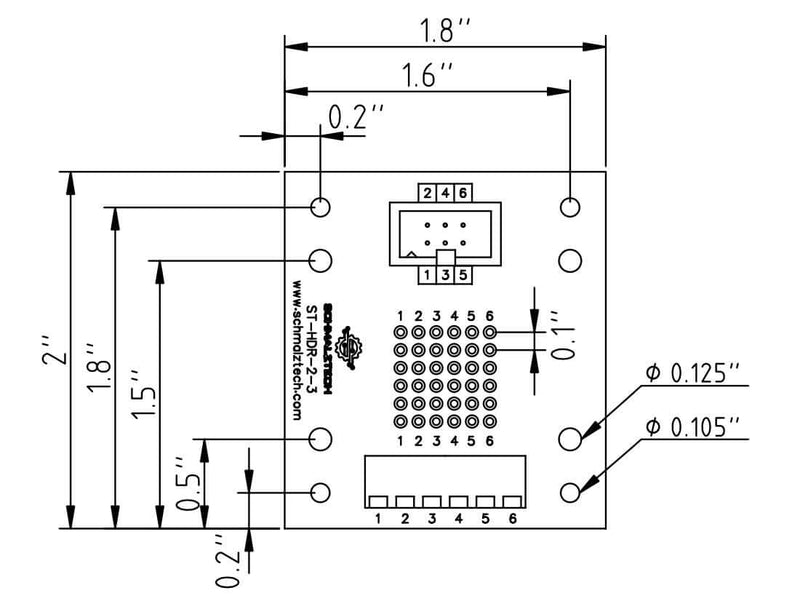

Mechanical Drawing
