SOT223-4 SMD to DIP Adapter

MPN: ST-SOT223-4

  • $1.49
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

Must be a multiple of: 5

725 available today. Need more?

Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • Converts a SOT-223-4 SMD part to a DIP form factor
  • High quality PCB can withstand re-work
  • Enables SMD parts to be used with a breadboard
  • 0.1" pitch holes for standard headers
Specifications
DIP Pitch:0.1"
SMD Package:SOT223-4
Surface Finish:ENIG
Temperature Rating:-30°C to +110°C

WARNING: California Prop 65

This SMD to DIP breakout board enables the easy conversion of a surface mount package to a DIP form factor. This adapter makes prototyping with surface mount parts fast and easy. Holes with a standard 0.1" pitch allow the board to work with common headers and enable SMD parts to be used in breadboards and perfboards. This SMD to DIP adapters are made with a premium ENIG surface finish and the board is made of high quality FR4 which can withstand high temperature soldering and re-work.

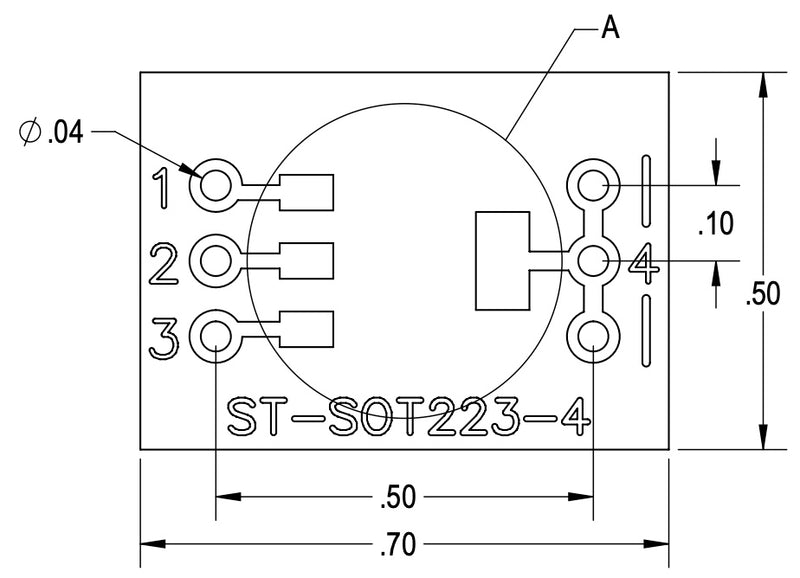

Mechanical Drawing
