BNC 50 Ohm Breakout Board with DIN Clips


  • $15.99
    Unit price per
Free Shipping on U.S. orders over $30.


62 available today. Need more?

Downloads Datasheet download

  • Breaks out center and shield of BNC
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Easily mounts on 35mm DIN rail
Wire Range (stranded):14-24 AWG
Wire Range (solid):14-24 AWG
Connector:BNC - 50 Ohm
PCB Surface Finish:LF HASL
Temperature Rating:-25°C to +70°C

WARNING: California Prop 65

This BNC breakout board provides a convenient method of accessing both the shield and center connections of a BNC connector. Both of the connections are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

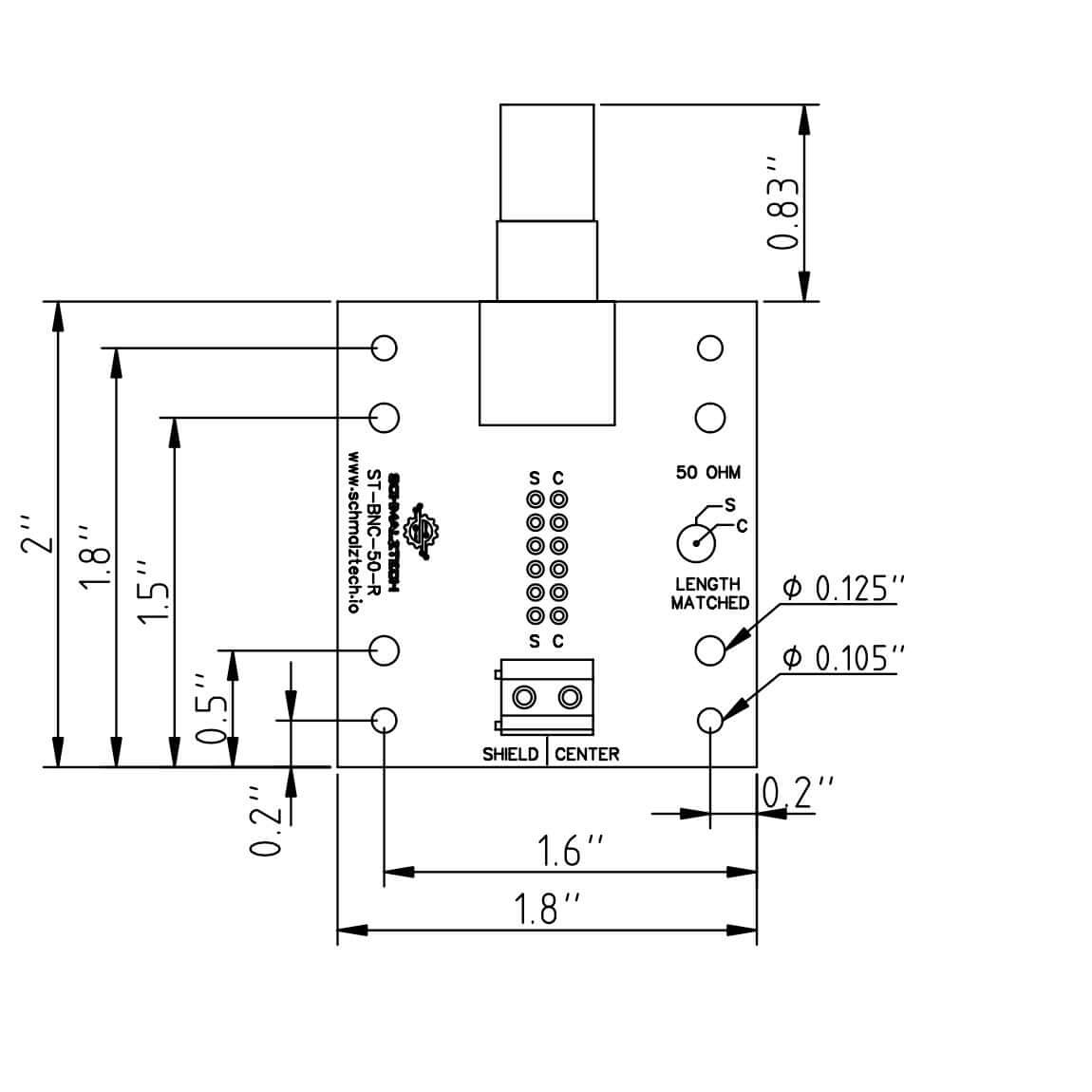

Mechanical Drawing
