4" x 6" Protoboard

MPN: ST-PROTO-4-6

  • $10.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

81 available today. Need more?

Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • High quality FR4 can withstand high temperature soldering and re-work
  • Standard 0.1" pitch holes enable compatibility with a large variety of components
  • Rows are electrically connected for fast circuit creation
  • Four mounting holes allow for easy fixturing
Specifications
Hole Pitch:0.1"
Hole Diameter:0.040"
Mounting Holes:4x - 0.125"
Surface Finish:ENIG
Temperature Rating:-30°C to +100°C

WARNING: California Prop 65

This protoboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards have an ENIG surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB have a standard 0.1" pitch to enable compatibility with a large variety of electronic components. The space between the power rails and the adjacent rows is 0.15". The space between the two center power rails is 0.2". Each hole is electrically connected to a row of holes to make building circuits fast and easy. See the drawing below for a detailed view of the electrical connections on this board. Both sides of this board have solder mask, making it easier to control solder flow and prevent unintentional bridges.

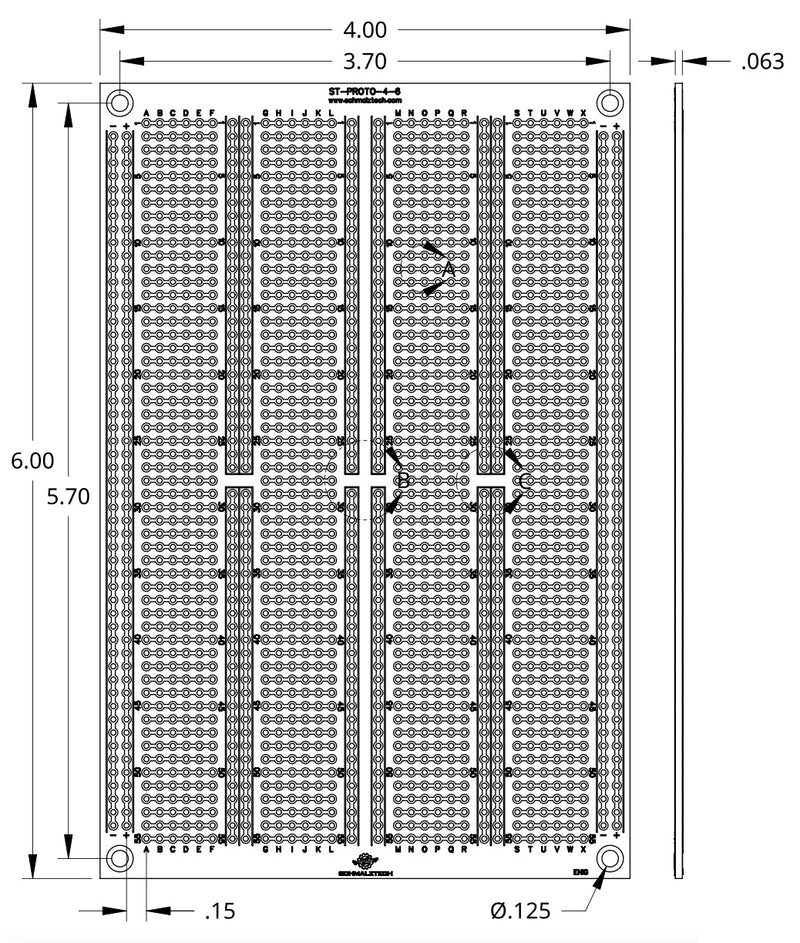

Mechanical Drawing
