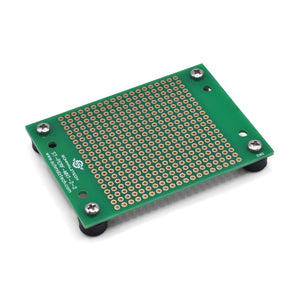

2" x 2" Perfboard with Rubber Feet

MPN: ST-PERF-MNT-2-2-FT

  • $6.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

36 available today. Need more?

Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • High quality FR4 can withstand high temperature soldering and re-work
  • Standard 0.1" pitch holes enable compatibility with a large variety of components
  • Each hole is electrically isolated for increased design flexibility
  • Rubber feet provide a stable base
Specifications
Hole Pitch:0.1"
Hole Diameter:0.040"
Mounting Holes:4x - 0.125"
Surface Finish:ENIG
Temperature Rating:-30°C to +80°C

WARNING: California Prop 65

This perfboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards have an ENIG surface finish and are made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB are aligned to a standard 0.1" grid to enable compatibility with a large variety of electronic components. Each hole is electrically isolated to allow for the highest degree of flexibility when laying out a circuit. Using solder, adjacent holes can be bridged to create electrical connections as needed. Both sides of this board have solder mask, making it easier to remove solder bridges when necessary. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench.

Mechanical Drawing
