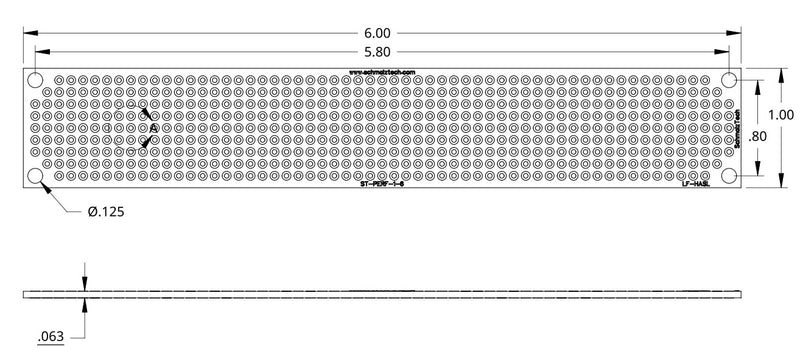

1" x 6" Perfboard
- High quality FR4 can withstand high temperature soldering and re-work
- Standard 0.1" pitch holes enable compatibility with a large variety of components
- Each hole is electrically isolated for increased design flexibility
- Four mounting holes allow for easy fixturing
|Mounting Holes:||4x - 0.125"|
|Temperature Rating:||-30°C to +110°C|
This perfboard is the perfect tool for quickly prototyping an electronic circuit or turning a breadboard prototype into something more permanent. These boards are completely lead free and made from high quality FR4 which can withstand high temperature soldering and re-work. The holes on this prototyping PCB are aligned to a standard 0.1" grid to enable compatibility with a large variety of electronic components. Each hole is electrically isolated to allow for the highest degree of flexibility when laying out a circuit. Using solder, adjacent holes can be bridged to create electrical connections as needed. Both sides of this board have solder mask, making it easier to remove solder bridges when necessary.
