USB Type A Breakout Board with Rubber Feet

MPN: ST-USB-A-R-FT

  • $12.99
    Unit price per
Shipping calculated at checkout.

-
+
Downloads Datasheet download
Mechanical Drawing download
3D Model (STEP) download

  • Breaks out all 4 contacts and shell
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Rubber feet provide a stable base
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:USB Type A
Lead Free:Yes
Temperature Rating:-15°C to +70°C
This USB Type A breakout board provides a convenient method of accessing all the contacts of a Type A USB connector. Each of the 4 connections as well as the shell are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The rubber feet on this model provide clearance for the connections on the bottom making it perfect for a lab environment where it can be placed directly on a bench.

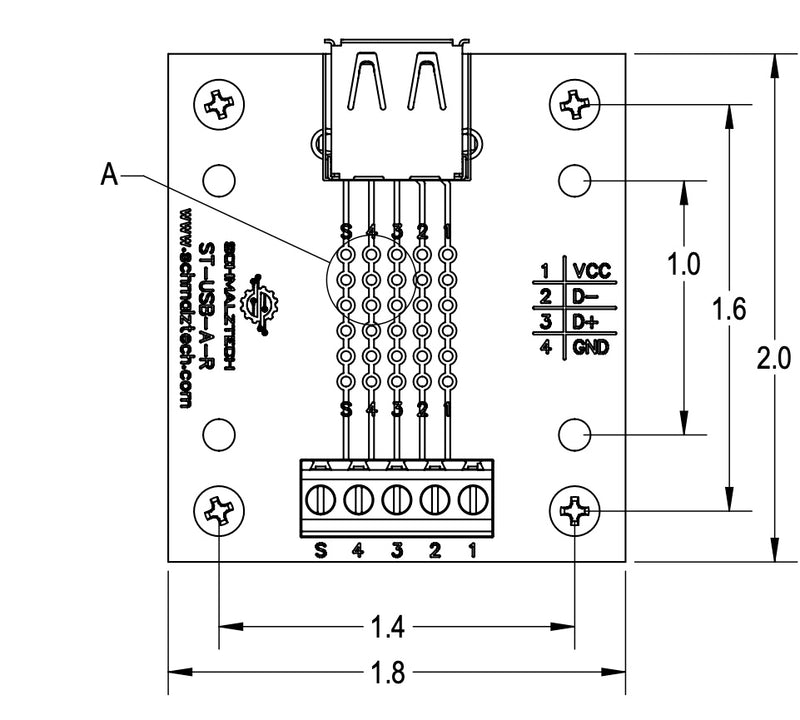

Mechanical Drawing
