DB15 High Density Male Breakout Board with DIN Clips
MPN: ST-DB15-HD-M-R-DIN
Free Shipping on U.S. orders over $25.
- Breaks out all 15 contacts + shield
- Screw terminals for fast connections
- Prototyping area for in-circuit modifications
- Easy access for probing and debugging
- Easily mounts on 35mm DIN rail
| Wire Range (stranded): | 16-26 AWG |
| Wire Range (solid): | 16-26 AWG |
| Connector: | DB15-HD - Male / VGA |
| PCB Surface Finish: | LF HASL |
| Temperature Rating: | -15°C to +70°C |
WARNING: California Prop 65
This male DB15 high density breakout board provides a convenient method of accessing all the contacts of a HD 15-pin D-Sub connector or a VGA connector. Each of the 15 connections as well as the shield are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

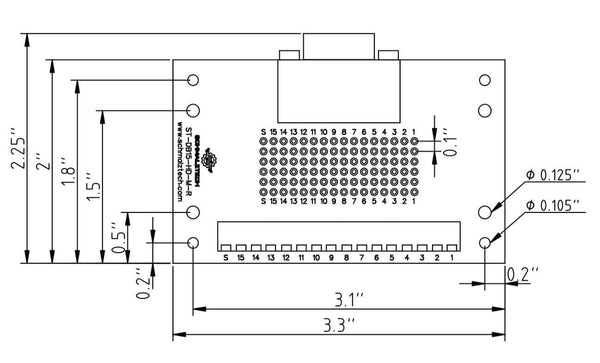

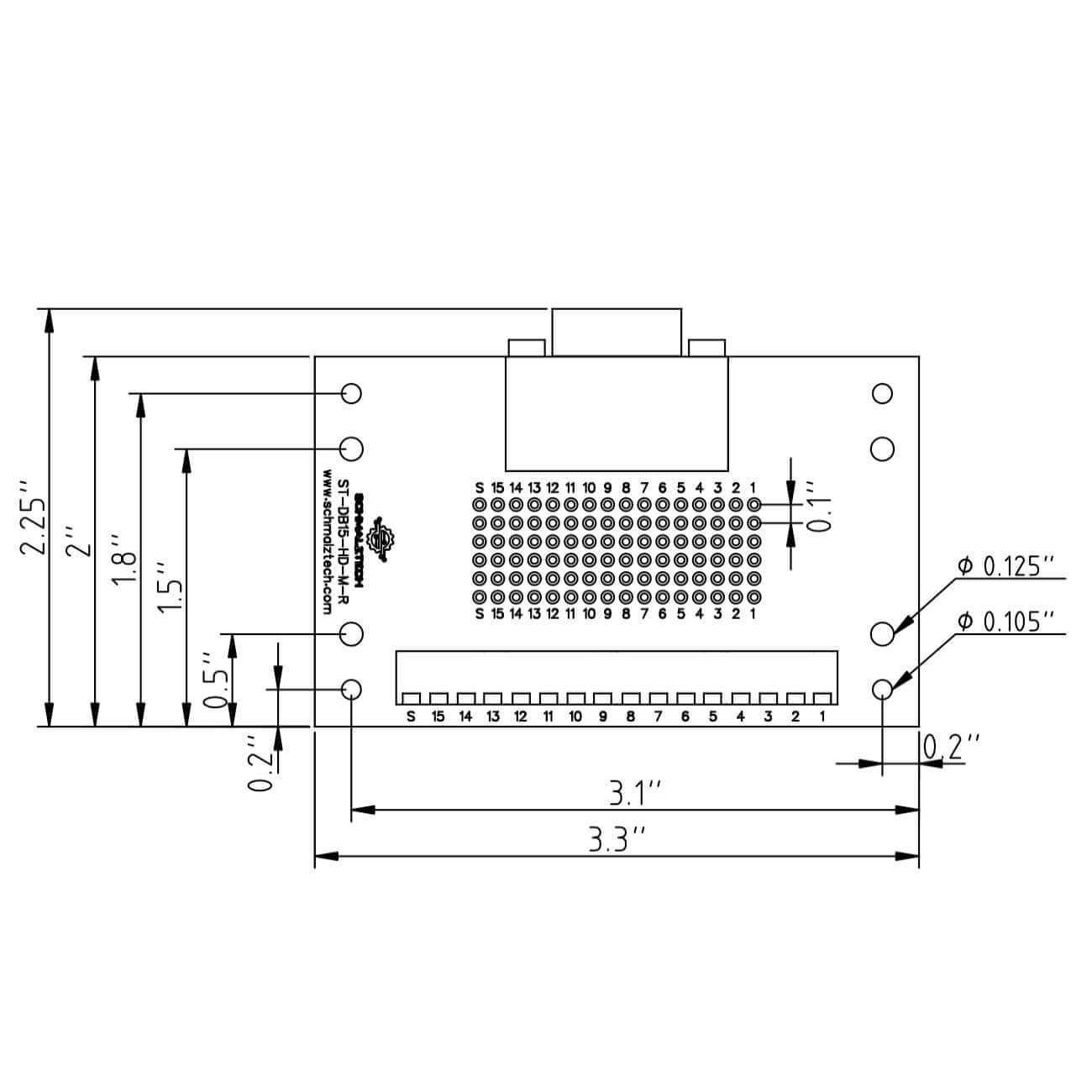

Mechanical Drawing
