DB15 Female Breakout Board with DIN Clips

MPN: ST-DB15-F-R-DIN

  • $16.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

134 available today. Need more?

Downloads Datasheet download

  • Breaks out all 15 contacts + shield
  • Screw terminals for fast connections
  • Prototyping area for in-circuit modifications
  • Easy access for probing and debugging
  • Easily mounts on 35mm DIN rail
Specifications
Wire Range (stranded):16-26 AWG
Wire Range (solid):16-26 AWG
Connector:DB15 - Female
PCB Surface Finish:LF HASL
Temperature Rating:-15°C to +70°C

WARNING: California Prop 65

This female DB15 breakout board provides a convenient method of accessing all the contacts of a 15-pin D-Sub connector. Each of the 15 connections as well as the shield are brought out to a screw terminal for fast and secure termination to wires. This board also features a prototyping area to enable in-circuit modifications as well as easy probing/diagnostics. The prototyping grid has a standard 0.1" pattern to enable compatibility with a variety of components. The DIN clips on this model allow it to be easily used with a 35mm DIN rail system, making this board perfect for industrial applications.

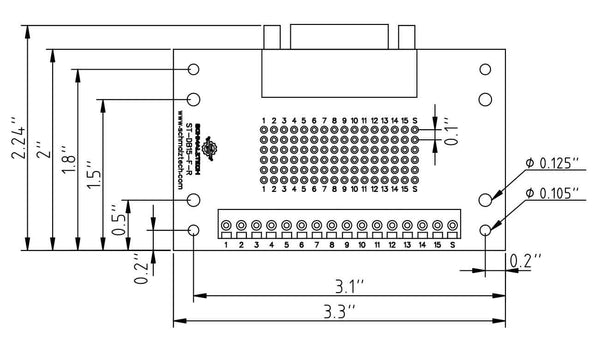

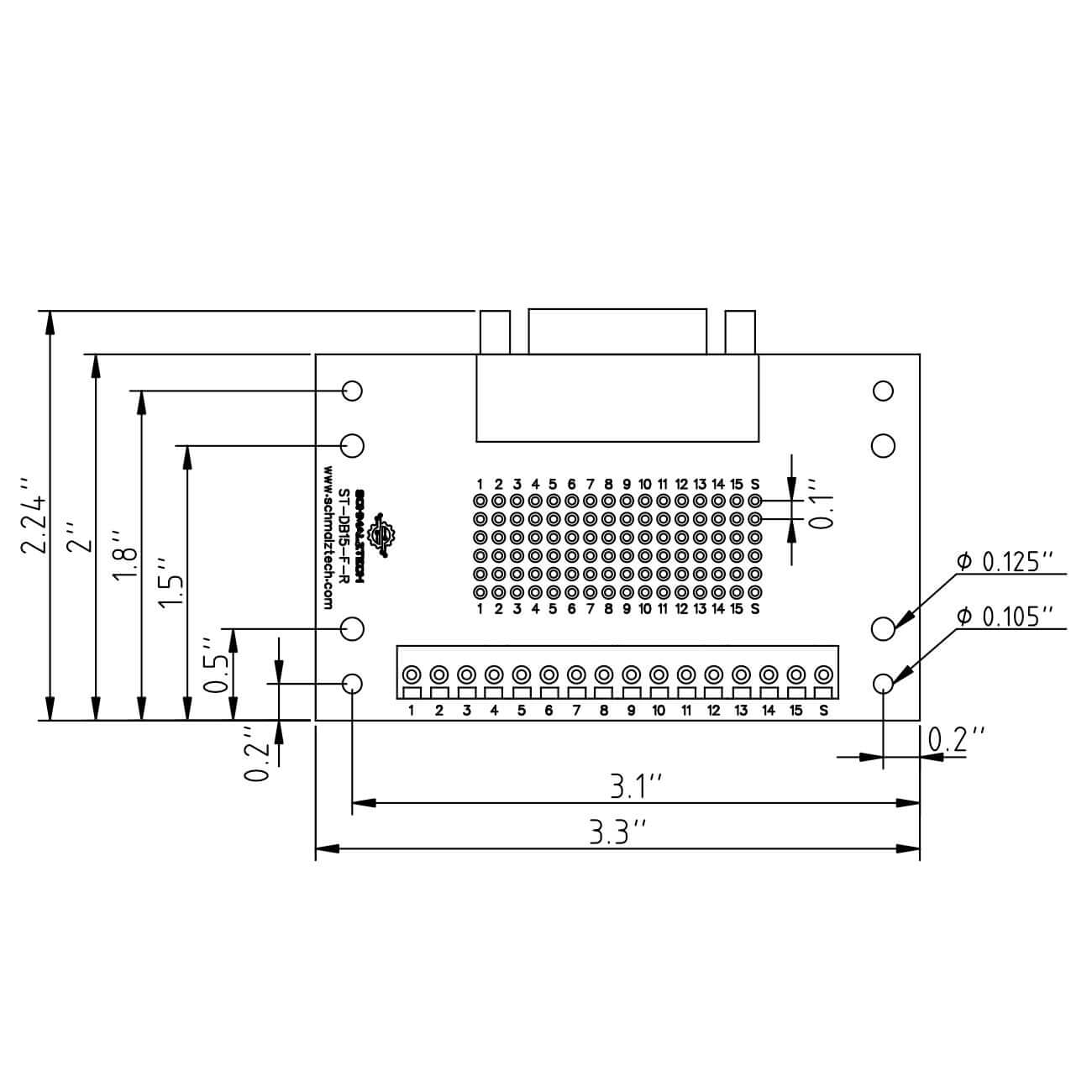

Mechanical Drawing
