770 Position Breadboard

MPN: ST-BB-770

  • $12.99
    Unit price per
Free Shipping on U.S. orders over $30.

-
+

38 available today. Need more?

Downloads Datasheet download

  • High quality ABS plastic breadboard
  • Standard 0.1" pitch holes enable compatibility with a large variety of components
  • Premium internal contacts ensure reliable and secure electrical connections
  • Two sets of full length power rails make circuit creation fast and easy
  • Eight mounting holes allow for sturdy fixturing
Specifications
Hole Pitch:2.54mm / 0.1"
Hole Diameter:0.95mm
Mounting Holes:8x - 3.1mm
Material:ABS Plastic
RoHS:Yes
Temperature Rating:+84°C

WARNING: California Prop 65

This premium breadboard is the perfect tool for quickly prototyping electronic circuits. Made of heat resistant, high quality ABS plastic and premium nickel plated electrical contacts this breadboard has excellent mechanical and electrical performance. Each row of five holes is electrically connected as well as each of the four full length power rails, making circuit creation fast and easy. This breadboard also features eight 3.1mm mounting holes along with an adhesive backing making it possible to securely mount it in any location. Multiple ST-BB-770 breadboards can be hooked together via the interlocking clips along the side of the board making it possible to expand your prototyping area as necessary. Please see the dimensioned drawing for more details regarding hole size and spacing.

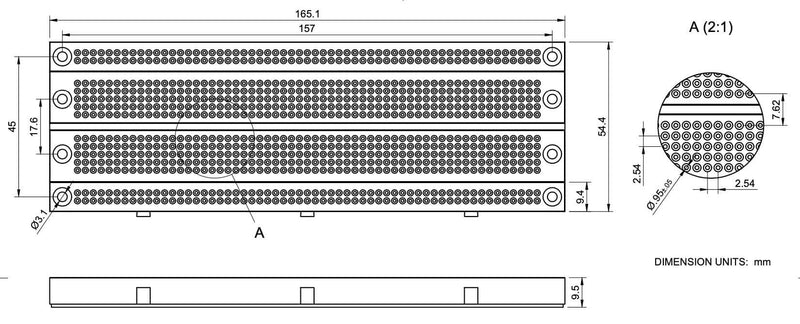

Mechanical Drawing
